Crafted with intent, built for excellence

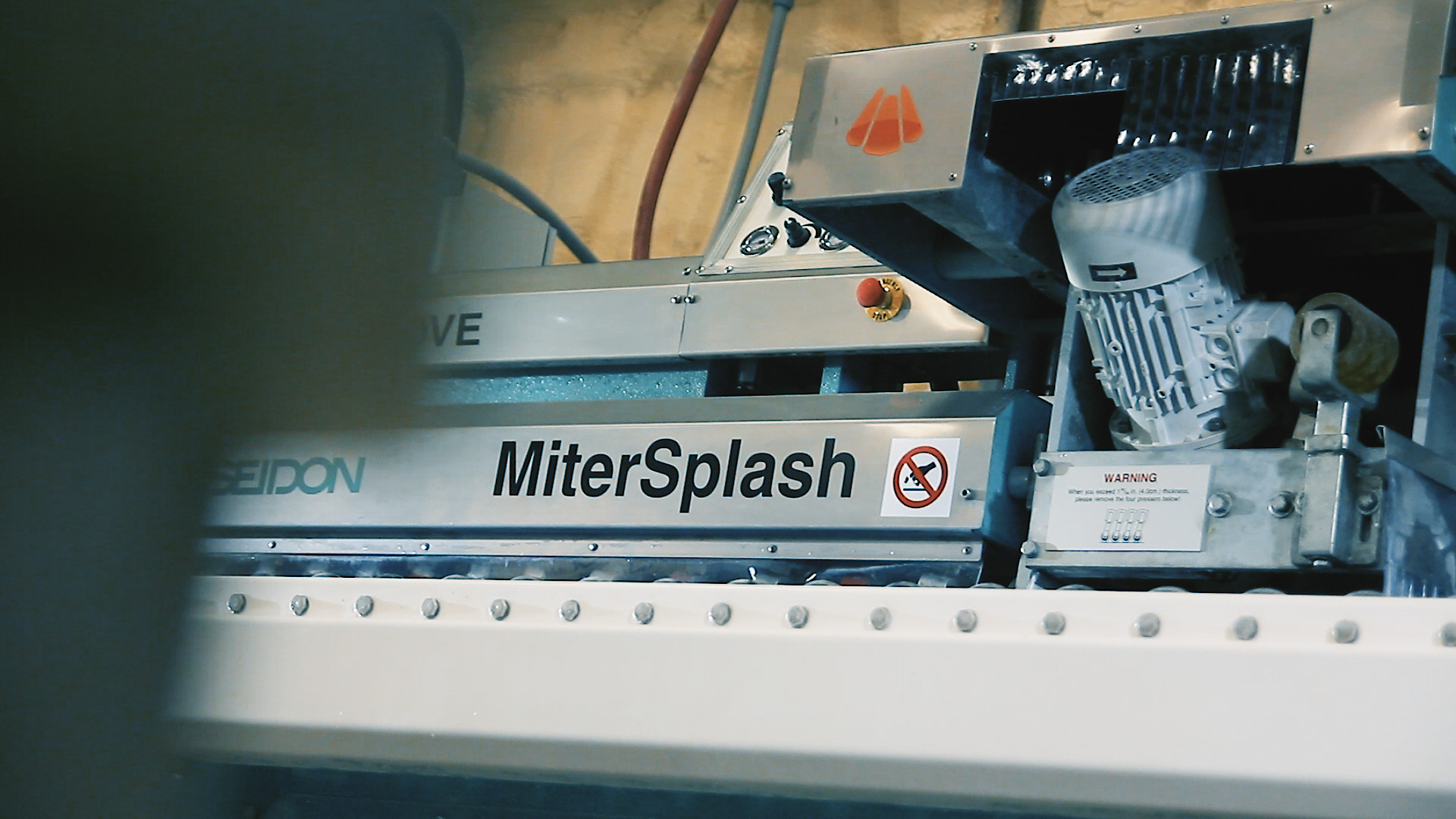

The MiterSplash edger is a 1-of-a-kind flat edge polisher and perfect miter seam cutting machine-in-1. It is designed to be able to polish 4″ backsplash and large countertop pieces up to 100″ wide which vertical backsplash polishers can not do

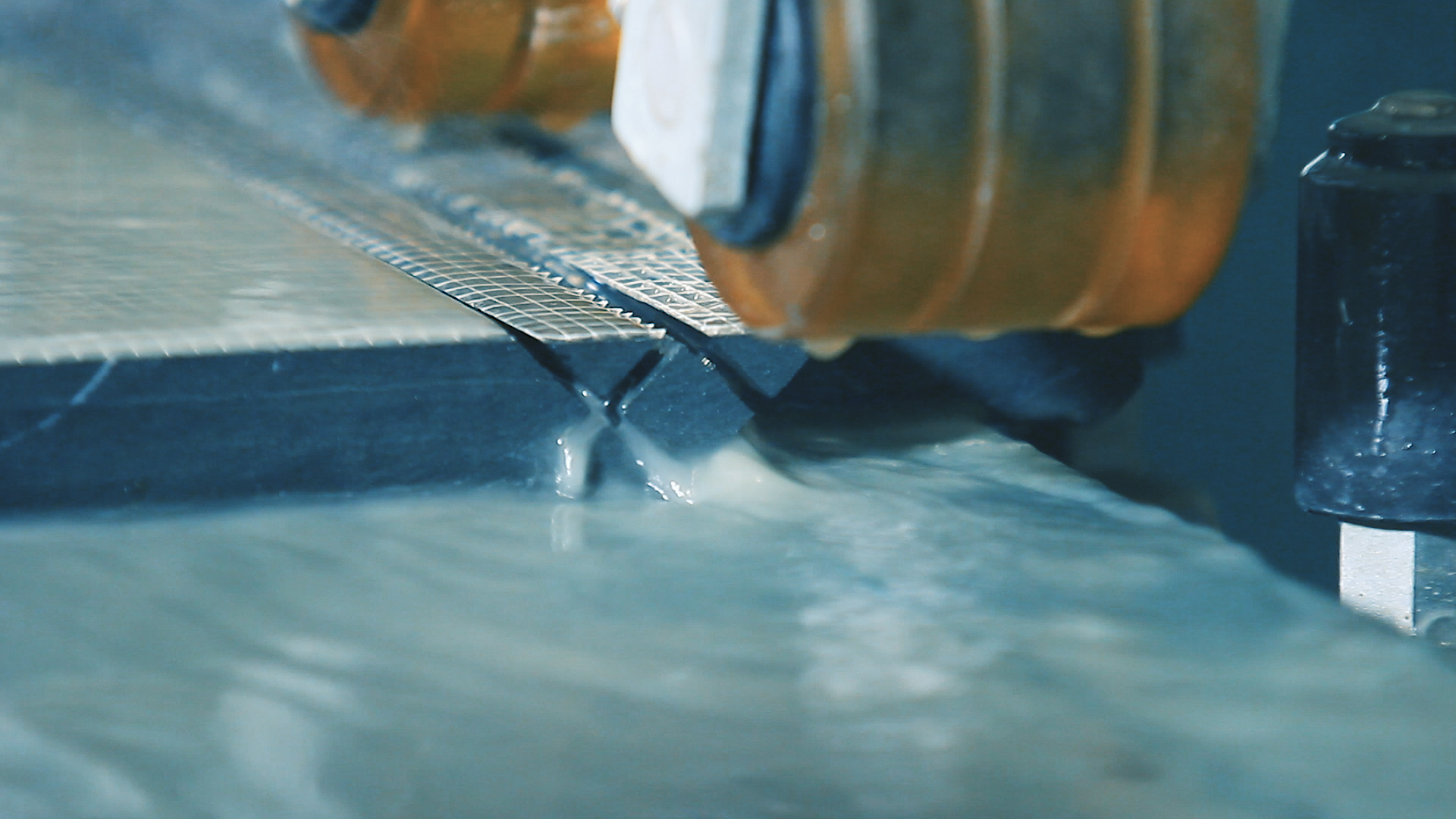

The MiterSplash also cuts at a 45 degree angle with polish faces down on the belt thus ensuring precise seam positioning when doing miters

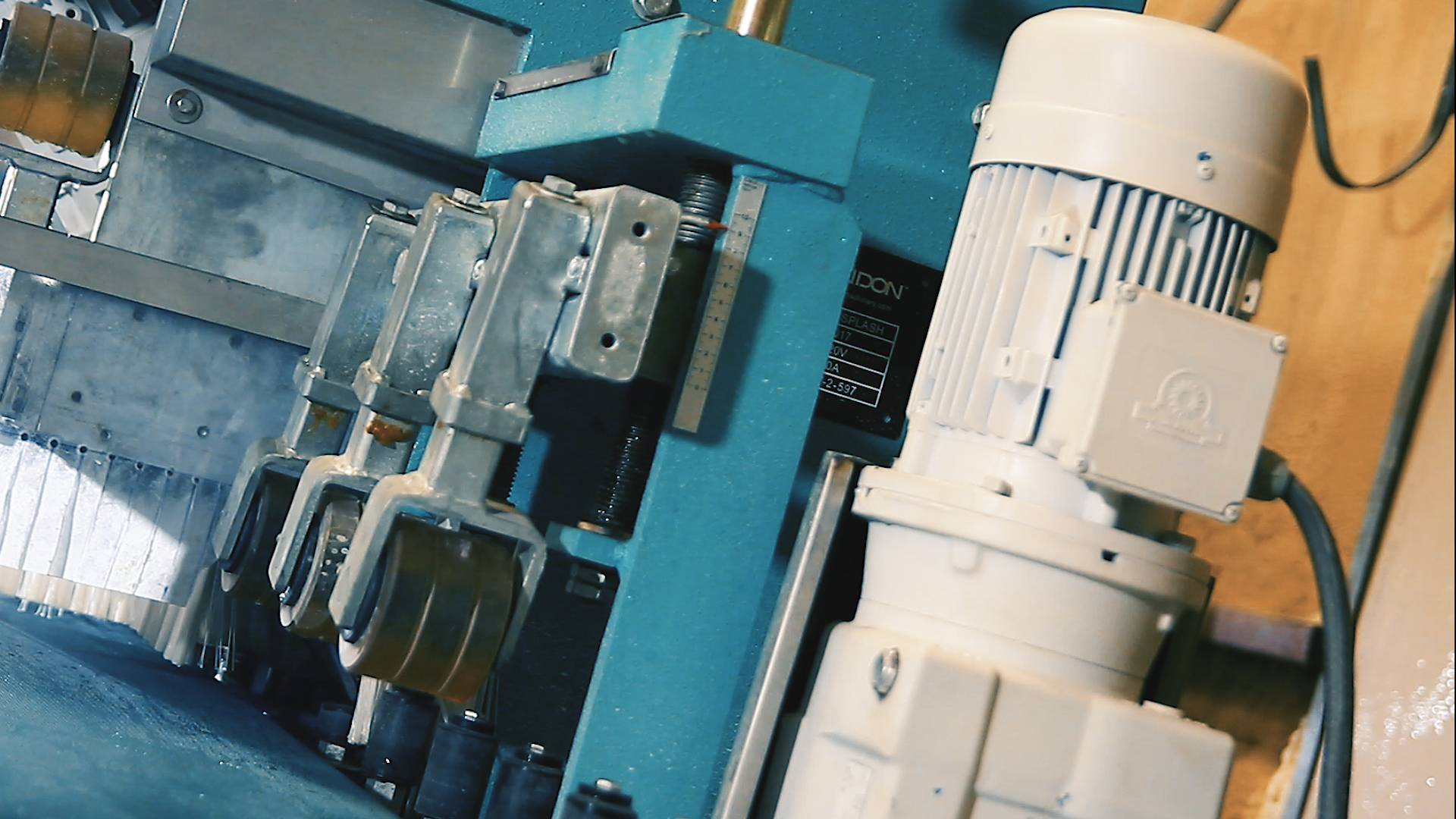

The standard MiterSplash comes equipped with 5 polishing motor heads, 2 chamfering motors, and 1 miter cutting unit at the end
Handles up to 3″ thick material, delivering 2–3 linear feet per minute polishing speed on flat 3cm edges and 12–18 inches per minute miter cutting speed. The V-Groove model adds a second miter cutting motor, enabling strip cutting and precision grooves directly into the mitered surface.
Footprint
13.5 Ft Long (MiterSplash) 16.5 Ft long (MiterSplash V Groove) by 7 Ft wide by 6 Ft high
Motor
5 Spindles for Flat Polish, 2 Chamfer motors, 1 Miter Cutting Motor (2nd Miter Cutting Motor with V Groove)
Polished Profiles
Flat Polish on BackSplash pieces and Any Size Countertop
Blade

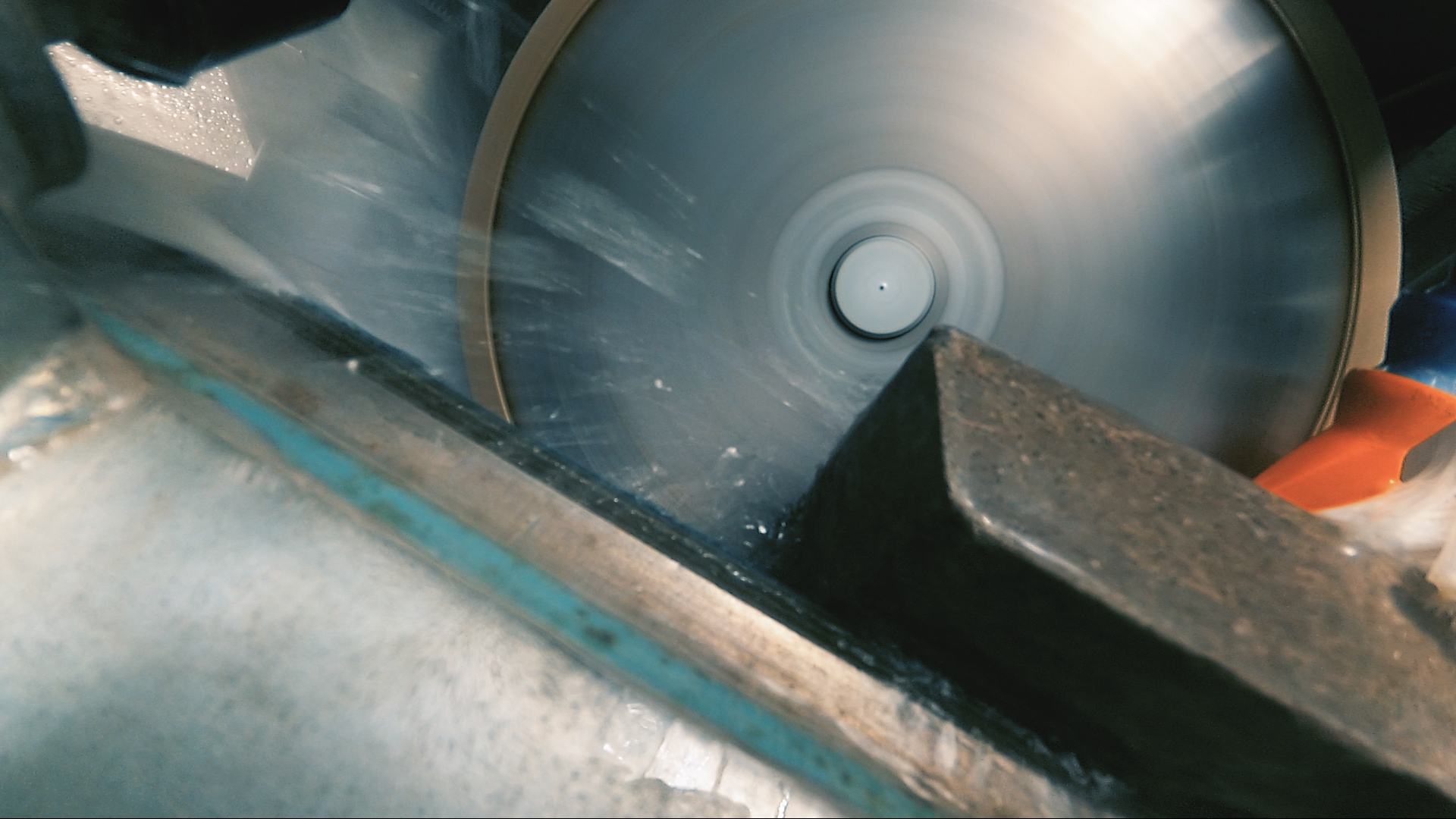

12" Cutting Blade
Air
Continuous 125 psi, 10 cfm
water
25 Gal/Min
Machine Weight
5200 lbs./6700 lbs
Electrical Power
230 Volt 3 Phase 60 Amp
