Bridge Saws
Lotus Bridge Saw
SEMI-AUTOMATIC CIRCULAR SAW MACHINE
No excuses. Just results.
the latest in stone and granite fabrication equipment
The Three Pillars
A 25HP Italian-made blade motor delivers smooth, high-torque cutting performance. Linear guide technology across X, Y, and Z axes ensures precise, stable movement every time.
Advanced touchscreen controls support English, Spanish, and Portuguese, with 100 programmable auto-mode cuts. One-touch homing, go-to positioning, and electrically motorized 0–45° bridge mitering simplify complex operations.

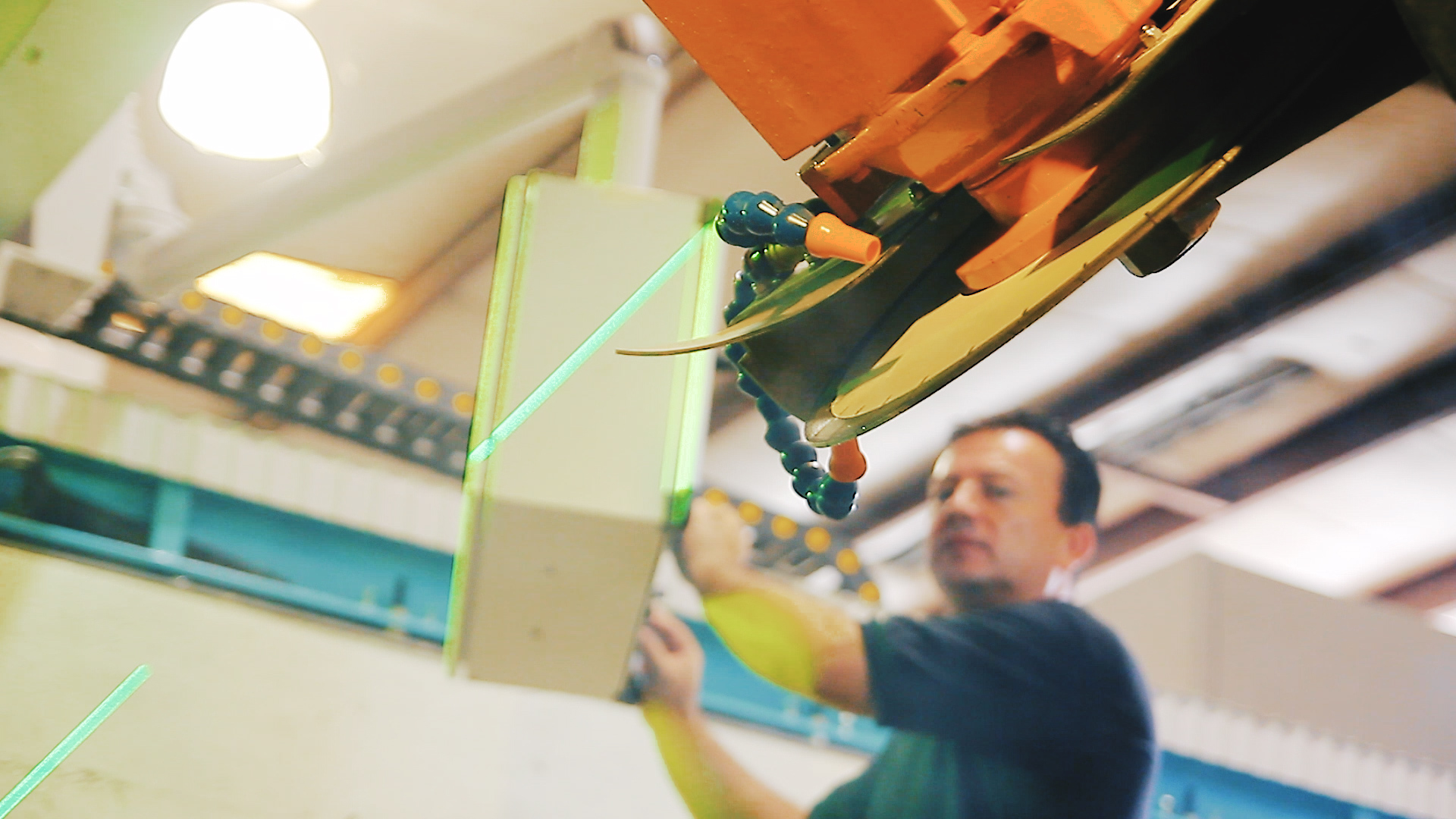

A heavy-duty enclosed axis system with bellow covers protects against shop conditions, while a wobble-free table lock ensures precision at any rotation. Includes a red laser for cutting accuracy, with green laser upgrade available.
MACHINE SPECIFICATIONS
Footprint
212 13/16" x 202 3/4" x 120"
Motor
25HP Saccardo 50mm Arbor Shaft
Blade
16"-20"
X-Axis
140"
Y-Axis
130"
Z-Axis
18"
Air
Continuous 125 psi, 10 cfm
Water
5 Gal/Min; 15 Micron
Machine Weight
11,500 lbs
Electrical Power
230 Volt 3 Phase 60 Amp
